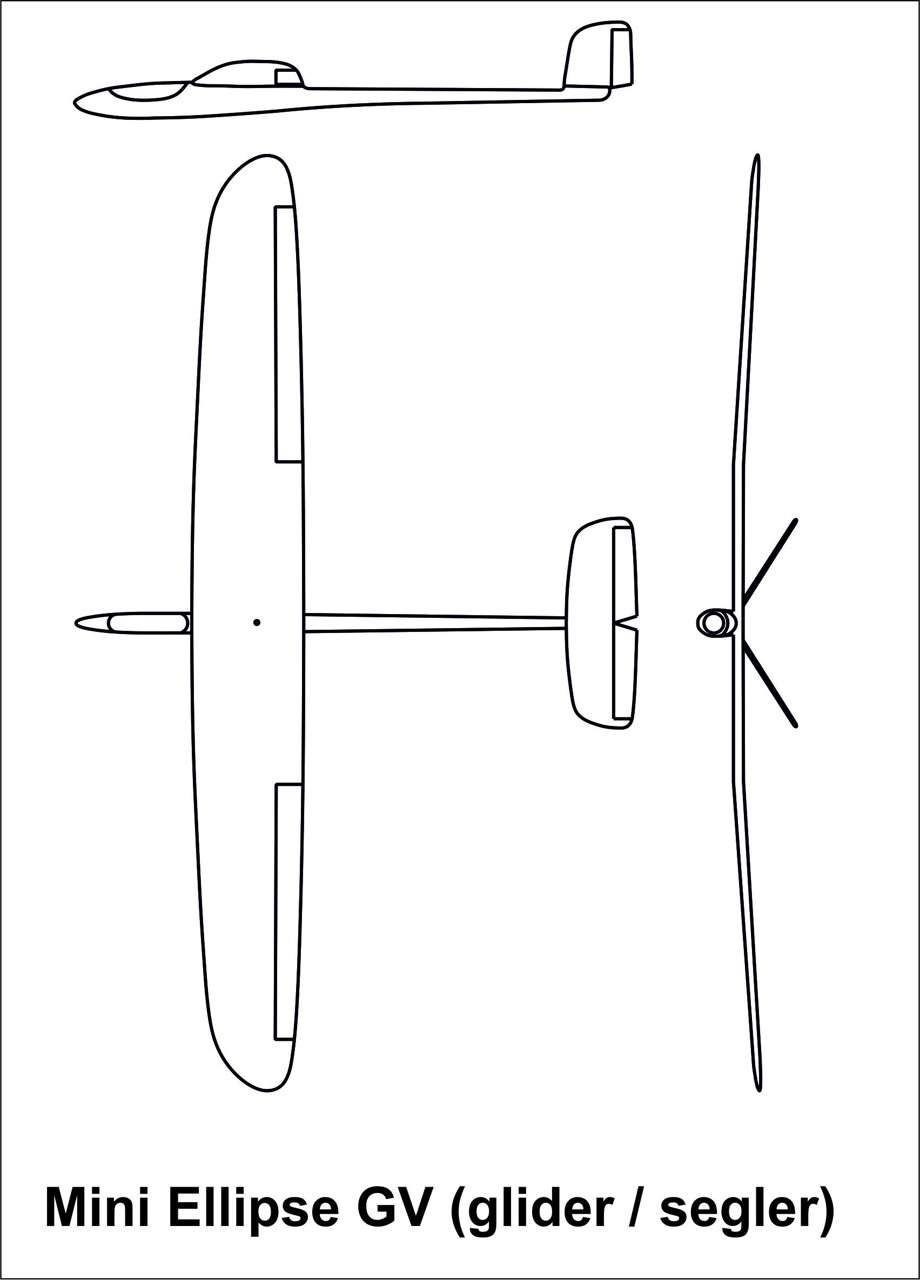

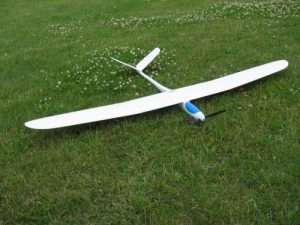

MINI ELLIPSE 1,5 m
– The world-class classic among compact universal models!
– Has been popular, tried and tested for many years and “always with you”.
– Simple construction, allround performance without flaps.
– Controlled functions: ailerons, rudder, elevator, (engine).
– Simple flight characteristics.
– Fits in many cars boots even assembled.
– Wing available in two versions:
-"universal" interior strucure from glass fibre -"strong" interior strucure from carbon fibre (additional weight approx. 25 grams)
|wing span||1466mm ( 4,8ft)|
|wing area||22,6dm2 (2,44sqft)|
|wing airfoil||RG15 mod.|
|V-tail area||3,0dm2 (0,32sqft)|
|empty weight||420g (14,8oz)||445g (15,7oz)||410g (14,5oz)||435g (15,35oz)|
|RC equipment weight||60-70g (2,1-2,5oz)||115-125g (4-4,4oz) – incl. ballast|
|ballast weight||0-20g (0-0,7oz)||75g (2,6oz)|
|power unit weight||200-240g (7,0-8,4oz)||–|
|flight weight||680-730g (24-25,8oz)||705-755g (24,9-26,6oz)||600-610g (21,1-21,5oz)||625-635g (22-22,4oz)|
– Servo mount and bowden cables for the v-tail completely glued in the fuselage:
– Cabin cover fitted with lock:
– Wiring for the aileron inserted inside the wing, incl. tightly bonded Multiplex connector:
– Complete accessories for servo steering.
On request with mounted servos and 2 drive units :
1) Motor MIG AC 400/16 + ESC Dualsky 12A + Graupner CAM FOLDING PROP 7×4″.
Lightweight design for thermal flying.
Weight 100 gramm, max. power ca. 100W.
Recommended battery 3S/1000-1200mAh.
Climbing power approx. 5m/s (100m in 20s). Small (7×4 “), aerodynamic in the gliding flight folding prop. Bat. 3S / 1000mAh allows approx. 12x climbing at a height of 100 m..
2) Motor MEGA AC 16/15/5 + ESC Dualsky 30a + Graupner CAM FOLDING PROP 9×5″.
“Allround drive”, approx. 20g extra weight compared to variant 1, which do not disturb at all in the more dynamic use!
Weight 120 gramm, max. power ca. 280W.
Recommended battery 3S/1200mAh.
The model climbs approx. 12.5 meters per second (100 m in 8s), having slightly more drag in glide through the also hinged prop. Bat. 3S / 1200mAh allows about 12 climbs to 100m height.
We will be happy to advise you on the use of other engines (of course, even more when needed !)
Feel free to ask us for advise!
Here it goes to:
Assembly instruction for new version
