Elasto accessories

Set of adjustment gauges for wing:

1 set of adjustment gauges is included in the model’s  package.

To set the zero point and set the deviation’s value.
For easy adjustment we recommend 2 sets (left and right).



Price see our price list.


Servo set electro:

The servos have to be ordered separately.
For standard version we recommend to order the following servos:
4x KST X10N mini…….F1, F2
4x KST X08N plus…….A1, A2
2x KST X08………………V1, V2

Total weight of all servos is about 149 grams (5,5oz).

Singel price servos see our price list.




Servo set glider:

The servos have to be ordered separately.
For competition use we recommend to order the following servos:
4x KST X10N mini…….F1, F2
4x KST X08N plus…….A1, A2
2x KST DS3015MG……V1, V2

Total weight of all servos is about 171 grams (6,3oz).

Singel price servos see our price list.




Ballast weight AL+vario 160-360g, for GV.

Additional weight for glider version (F3J).

By combining the lighter and heavier individual weights, the total weight can vary between 160-360 grams.



Price see our price list.




Ballast inlets for EV, GV.



Additional weight for electric (F5J) and glider version (F3J).

Insert the additional weight into the wing joiner.



Price see our price list.






Bag sun protection

Set of protective bags for wing and V-tail.

Surface made of sturdy aluminum foil, which provides the best protection from the sun’s rays.

The soft padding on the inside of the protective bags absorbs shock and force very well and thus promotes the longevity of the model.

Price see our price list.
















Receiver JETI Duplex REX 12 EPC special production

Special production of JETI receiver REX 12 EPC.
Without power plug MPX.
Without sleeved dipole antenna.
Antenna length 200mm



Price see our price list.




Gear drive units for Lipo 3S

MEGA AC 16/10+PG with planetary gear Reisenauer Micro Edition 5:1

      • With carbon fiber spinner 32mm GM and propeller GM 16×8″
      • Total weight: 121g (3,89oz)
      • Optimized for Lipo 3S
      • Static thrust 1,9kg by 45A current
      • Climb rate app. 12m/s
      • Recommended ESC: YGE 65LVT

Schambeck POWERLINE MICRO 1020/F5J TURBO 3S

        • With carbon fiber spinner 32mm GM and propeller GM 16×8″
        • Total weight: 119g (3,83oz)
        • Optimized for Lipo 3S
        • Static thrust 1,9kg
        • Climb rate app. 12m/s
        • Recommended ESC: YGE 65LVT

Schambeck POWERLINE MICRO 1025/F5J TURBO 3S

          • With carbon fiber spinner 32mm GM and propeller GM 16×8″
          • Total weight: 130g (4,18oz)
          • Optimized for Lipo 3S
          • Static thrust: 2,1kg
          • Climb rate:  app. 13m/s
  • Recommended ESC: YGE 65LVT



LEOMOTION 3007-5000

          • With carbon fiber spinner 32mm GM and propeller GM 16×8″
          • Total weight: 137g
          • Optimized for Lipo 3S
          • Static thrust: 1,5kg by 41A current
          • Climb rate: app. 10m/s
          • Recommended ESC: YGE 65LV



Prices see our price list.


Gear drive units for Lipo 4S

MEGA AC 16/15/2,5RT with planetary gear Reisenauer Micro Edition 5:1

  • With carbon fiber spinner 32mm GM andpropeller GM 13×8″
  • Total weight: 129g (4,15oz)
  • Optimized for Lipo 4S
  • Static thrust 2,1kg with 35A current
  • Climb rate app. 12m/s
  • Recommended ESC: YGE 35LVT

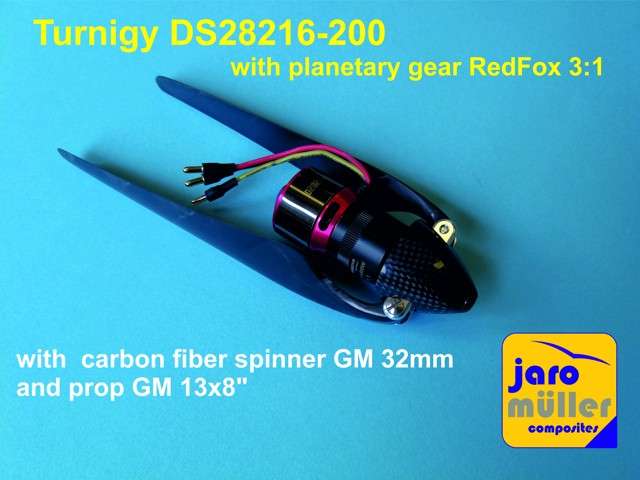

Turnigy DS28216-200 mit planetary gear RedFox 3:1

Drive unit specially developed by us for the Elasto model.

  • With carbon fiber spinner 32mm GM andpropeller GM 13×8″
  • Total weight: 108g (3,41oz)
  • Optimized for Lipo 4S
  • Static thrust 1,6kg with 25A current
  • Climb rate app. 10m/s
  • Recommended ESC: YGE 35LVT
  • Reccommended battery: Hacker TopFuel 25C-ECO-X 1300mAH 4S F5J-EDITION (not avilable from us).
We have been testing this drive unit for more than 2 years on our own Elasto models (current January 2019), so far without any problems.

Prices see our price list.


ESC:

YGE 35 LVT with telemetry

Cell number: 2-6 LiPo.
Adjustable HV-BEC from 5,5 to 8,4V .
High BEC-current rating: 5A permanent  / 10A peak.
Dimensions: 34 x 23 x 8 mm
Weight with / without cables: 25g / 13g
Telemetry: Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via S32 (new Jlog).





YGE 65 LVT with telemetry

ell number: 2-6 LiPo.
Adjustable HV-BEC from 5,5 to 8,4V .
High BEC-current rating: 8A permanent  / 18A peak.
Dimensions: 64 x 26 x 9 mm
Weight with / without cables: 45g / 30g
Telemetry: Graupner HoTT V4, Jeti ExBUS, Multiplex Sensor BUS V2, YGE-protocol for different telemetry-connections for example via S32 (new Jlog).

Price see our price list Egida or price list Eldorado.
